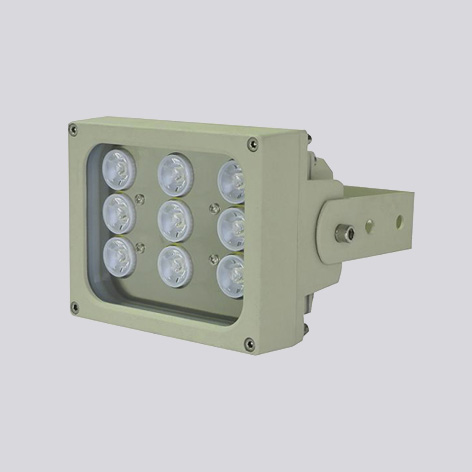

› Iluminador Infrarrojo
› 90 Mts
› 90°
› IP66
› 12Vcc
LED type 9pcs 2W dot-matrix IR LED
Wavelength 740nm/850nm/940nm
Power factor 0.9-0.98
Voltage AC85-265V/DC12V/AC24V
Power consumption 24W
Day and night switch Auto (build in photocell)
Cable 1.3M waterproof Cable
Mounting Wall mounting “U” bracket
Temperature -40℃ to 55℃
Grade of protection IP66
Color Beige
Housing Aluminium
Panel High light transmittance toughened glass
Net weight 1.4kg
Gross weight 1.7kg
Dimension 110*135*91mm
Packing dimension 190*180*135mm
S09D-90-A-IR 90° 90m*
8 CH AHD + 4 CH IP Hybrid DVR, Input: 8CH AHD Standard BNC + 4CH IP (Over Network), Output: HDMI, VGA (800×600, 1024×768, 1280×1024), CVBS, Small Case, 1 HDD, Audio In/Out, RS-485.
AHD 1.3MP, DI-380AHDVF, Sensor: 1/3″, 1.3 Mega-Pixel, Selectable output-720P AHD/Analog, Lens: 2.8-12mm Mega-Pixel Fixed, True Day & Night – ICR, IR Range: 25m (3 Array LED), IP66, Weight: 476g, Power: DC 12V
16CH 720P AHD + 2CH 960P IP HYBRID DVR, Input: 16Ch AHD/Analog BNC + 2Ch IP (Over Network), Output: HDMI, VGA, Small 1U Case, 1 HDD, Audio In/Out, RS-485, 100Mbps Network.
4CH 720P AHD DVR, Input: 4 Channel AHD/Analog BNC, Output: HDMI, VGA. Mini Metal Case, 1 HDD, Audio In/Out, RS-485, 100Mbps Network.
AHD 2MP, I4-390AHDVF, Sensor: 1/3″, 2 Mega-Pixel, Selectable output-1080P AHD/Analog, Lens: 2.8-12mm Mega-Pixel Vari-Focal, True Day & Night – ICR, IR Range: 40m (4 Array LED), IP66, Weight: 836g, Power: DC 12V, ~480mA
AHD 2MP, DI-390AHDVF, Sensor: 1/3″, 2 Mega-Pixel, Selectable output-1080P AHD/Analog, Lens: 2.8-12mm Mega-Pixel Fixed, True Day & Night – ICR, IR Range: 25m (3 Array LED), IP66, Weight: 476g, Power: DC 12V, ~400mA
AHD 2MP, DI-390AHD36, Sensor: 1/3″, 2 Mega-Pixel, Selectable output-1080P AHD/Analog, Lens: 3.6mm Mega-Pixel Fixed, True Day & Night – ICR, IR Range: 20m (2 Array LED), IP66, Weight: 270g, Power: DC 12V, ~310mA.
8CH 720P AHD + 1CH, 960P IP HYBRID DVR, Input: 8Ch AHD/Analog BNC, + 1Ch IP (Over Network), Output: HDMI, VGA, Mini Metal Case, 1 HDD, Audio In/Out, RS-485, 100Mbps Network
