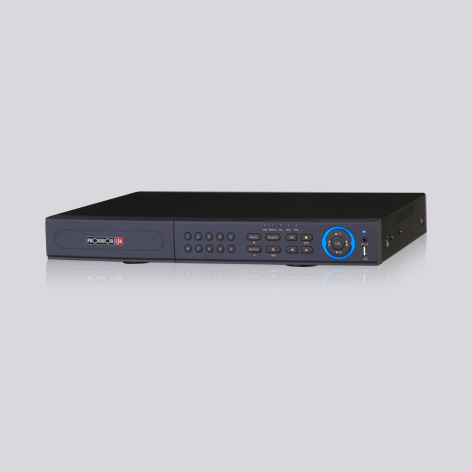

SA-16200AHD-1

Descripción

VIDEO

Input: 16 Channel AHD / Analogue (BNC) + 2 Channel IP (Over Network)

Output: VGA: 800×600/1024×768/1280×1024

HDMI: 1920×1080

RECORDING

16CH 720P AHD/Analogue + 2CH 960P IP

AHD: 720P
FPS: 200 (PAL) / 240 (NTSC)
Resolution: 1280×720 (PAL/NTSC)

Analogue: 960H
FPS: 400 (PAL) / 480 (NTSC)
Resolution: 960×575 (PAL) / 960×480 (NTSC)

IP: 960P
FPS: 50 (PAL) / 60 (NTSC)
Resolution: 1280×960 (PAL/NTSC)

PLAYBACK

8 Channel Simultaneously

AUDIO

Input: 4 Channel (RCA)

Output: 1 Channel (RCA)

2 Way audio

STORAGE

2 x SATA (Up to 4TB)

NETWORK

RJ-45: 100Mbps

ALARM

Input: 16 (Dry-Contact)

Output: 1 (Dry-Contact)

USB PORT

2 x USB2.0

PTZ / KEYBOARD

1 x RS485

Protocol: Pelco DP/Samsung/Visca (IP Over ONVIF)
