| MODEL | I4-390AHDVF |
| Image Sensor | 1/3″ Sony 2MP Sensor |
| Effective Pixels | 1984(H)x1225(V) |
| Scanning System | Progressive |
| Resolution | Digital:1920×1080, Analog:960H |
| Min. Illumination | 0.01Lux |
| Day & Night | True Day&Night (ICR) |
| IR LED | 4 LED Array (40m) |
| OSD Menu | Available(11 Languages, AHD/CVBS Output Selectable) |
| Day & Night Mode | EXT, Color, B&W, Auto |
| Backlight Compensation | Off/BLC/HSBLC |
| S/N Ratio | ≥72dB (AGC Off) |
| White Balance | ATW,AWC,Indoor,Outdoor,Manual,AWB |
| Noise Reduce | 3D-DNR For AHD / 2D-DNR For CVBS |
| Video Output | AHD/CVBS (Signal Selectable from OSD) |
| Defog | Off/On |
| Privacy Mask | On/Off (4 Areas) |
| Motion Detection | On/Off (4 Areas) |
| D-Effect | Freeze, Mirror, Negative Image |
| Lens | 2.8-12mm |
| Power | DC12V±10%, ~480mA |
| Operation Temp. | -10¡C~+50¡C |
| Waterproof | IP66 |
| Dimension | 286*77*85.6mm |
| Net weight | 836g |

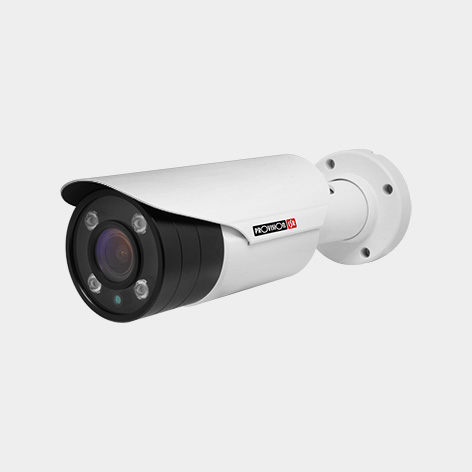

I4-390AHDVF
AHD 2MP, I4-390AHDVF, Sensor: 1/3″, 2 Mega-Pixel, Selectable output-1080P AHD/Analog, Lens: 2.8-12mm Mega-Pixel Vari-Focal, True Day & Night – ICR, IR Range: 40m (4 Array LED), IP66, Weight: 836g, Power: DC 12V, ~480mA
